Schmidt Flange Alignment Tool: Correct Misalignment Anywhere – Fast, Safe, efficient

more about us

Achieve perfect flange joint alignment during pipeline maintenance with Schmidt’s Flange Alignment Tool. This essential tool attaches directly where misalignment is greatest, applying controlled push/pull force to rectify twist and rotation quickly and safely – no external power source required. Suitable for most ANSI, API, BS, and DIN flanges, our flange alignment tool eliminates complex rigging like slings or hooks. Its portable, lightweight design enables installation and operation in any position, even in remote locations. Experience efficient, reliable realignment with this precision flange alignment tool.

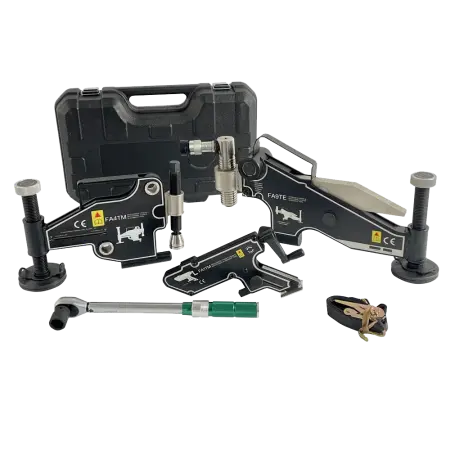

FAT Series Mechanical & Hydraulic Flange Alignment Tools

FATM1: Schmidt-engineered mechanical alignment for compact flanges. Ensures precise positioning on smaller diameter, low-pressure pipelines. Lightweight and efficient.
FATM4: Mechanical fixed & rotational alignment solution for medium-duty flanges. Corrects misalignment on standard pressure pipelines quickly and reliably.
FATM9: Robust mechanical tool for large-diameter, high-pressure flanges. Delivers powerful fixed and rotational alignment with superior mechanical advantage.
FATE9: Hydraulic-powered alignment for critical high-pressure flanges. Schmidt’s strongest solution for demanding large-diameter applications requiring maximum force.

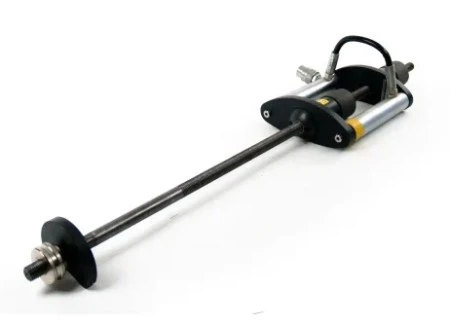

FC10TE Series: 10 -20 ton Flange Closing Tool

Precision flange alignment tool engineered to close stubborn large-bolt-hole flanges (22mm+/7/8″+) with unmatched 600mm reach. Deploy in synchronized pairs for 20-ton closing force – ideal for critical pipeline assembly/maintenance. Schmidt’s hydraulic technology ensures controlled, damage-free flange mating while eliminating manual hammering risks. The ultimate solution for precision alignment of high-integrity connections in demanding industrial environments.

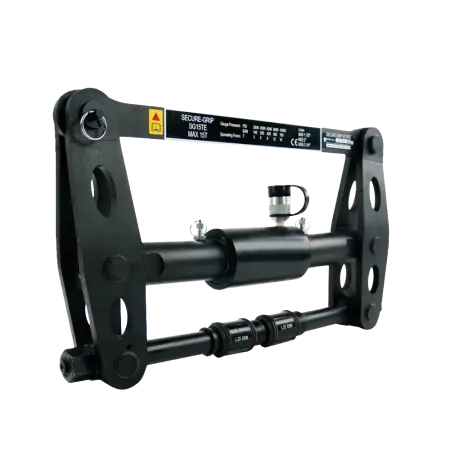

FSG Series: Mechanical & Hydraulic Secure-Grip Flange Spreader

The ultimate zero-clearance flange alignment tool engineered to separate tightly mated flanges where competitors fail. Delivers unmatched 25-ton spreading force without damaging flange faces. Perfect for critical pipeline maintenance, repair, pressure testing, and flange replacement applications. Schmidt’s innovative design solves zero-gap challenges while ensuring surface integrity and operational safety.

Model	Alignment Capacity(Ton)	Min. Bolt Size(mm)	Min. Bolt Size(inch)	Flange Thickness(mm)	Flange Thickness(inch)	Type	Weight (kg)
FATM1	1	16	0.63	14-82	0.55-3.29	Mechanical	2
FATM4	4	24	0.95	30-133	1.18-5.23	Mechanical	8.6
FATM9	9	31.5	1.24	93-228	3.66-9	Integral Hydraulic	16.5
FATE9	9	31.5	1.24	93-228	3.66-9	Split Hydraulic	16.5

Model No.	Max. Closing Force(T)	Max Closing Distance	Min Bolt Hole Diameter	Kit Contents	Weight (kg)


FC10TE	10	600	22	MINI KIT	21
				(1xFC10TE)
FC10TESTD	10	600	22	STANDARD KIT	27
				(Including a Hand Pump ,1xFC10TE)
FC10TEMAX	20	600	22	MAXI KIT	40
				(Including a Hand Pump ,2 x FC10TE)

Model	Capacity(Ton)	Max Spread(mm)	Tip Clearance(mm)	Type	Usable On Flanges Specified To Accept The Following Bolt Sizes	Oil Capacity (cm³)	Weight(Kg)
FSG4TM	4	75	0	Mechanical	M16,M20,5/8”,3/4”	*	12.8
FSG6TM	6	80	0	Mechanical	M24,M27,7/8”,1”	*	16
FSG11TM	11	90	0	Mechanical	M30,M33,M36,1 1/8”,1 1/4”,1 3/8”	*	20
FSG13TE	13	115	0	Hydraulic	M39(1 1/2”),N42(1 5/8”),M45(1 3/4”)	300	40.5
FSG15TE	15	100	0	Hydraulic	M48(1 7/8”),M52(2”),M56(2 1/4”)	400	45
FSG18TE	18	100	0	Hydraulic	M60(2 3/8”),M64(2 1/2”),M70(2 3/4”)	400	45
FSG25TE	25	120	0	Hydraulic	M76(3”),M80(3 1/4”),M84(3 3/8”),M90(3 1/2”),M95(3 3/4”),M100(4”)	500	50
