Where Human Precision Meets Hydraulic：
square drive hydraulic wrenches help you in every industry bolting
Square drive hydraulic wrenches are ideal for securing and removing critical structural bolts in bridge construction, wind turbine assembly, and heavy machinery maintenance—where precision torque and absolute joint integrity cannot be compromised.
Square Drive Hydraulic Wrenches: The Precision Powerhouse
Square drive hydraulic wrenches are essential for heavy-duty applications where structural reliability is paramount, such as bridge construction, wind turbine installations, and industrial machinery maintenance. Square drive hydraulic wrenches provide consistent, high-torque output using standard sockets, ensuring uniform clamping force and preventing joint failure in critical bolts. By replacing manual or impact methods, Square drive hydraulic wrenches deliver fluid-powered accuracy and operational efficiency, reducing downtime and enhancing safety in demanding environments.
For most construction scene

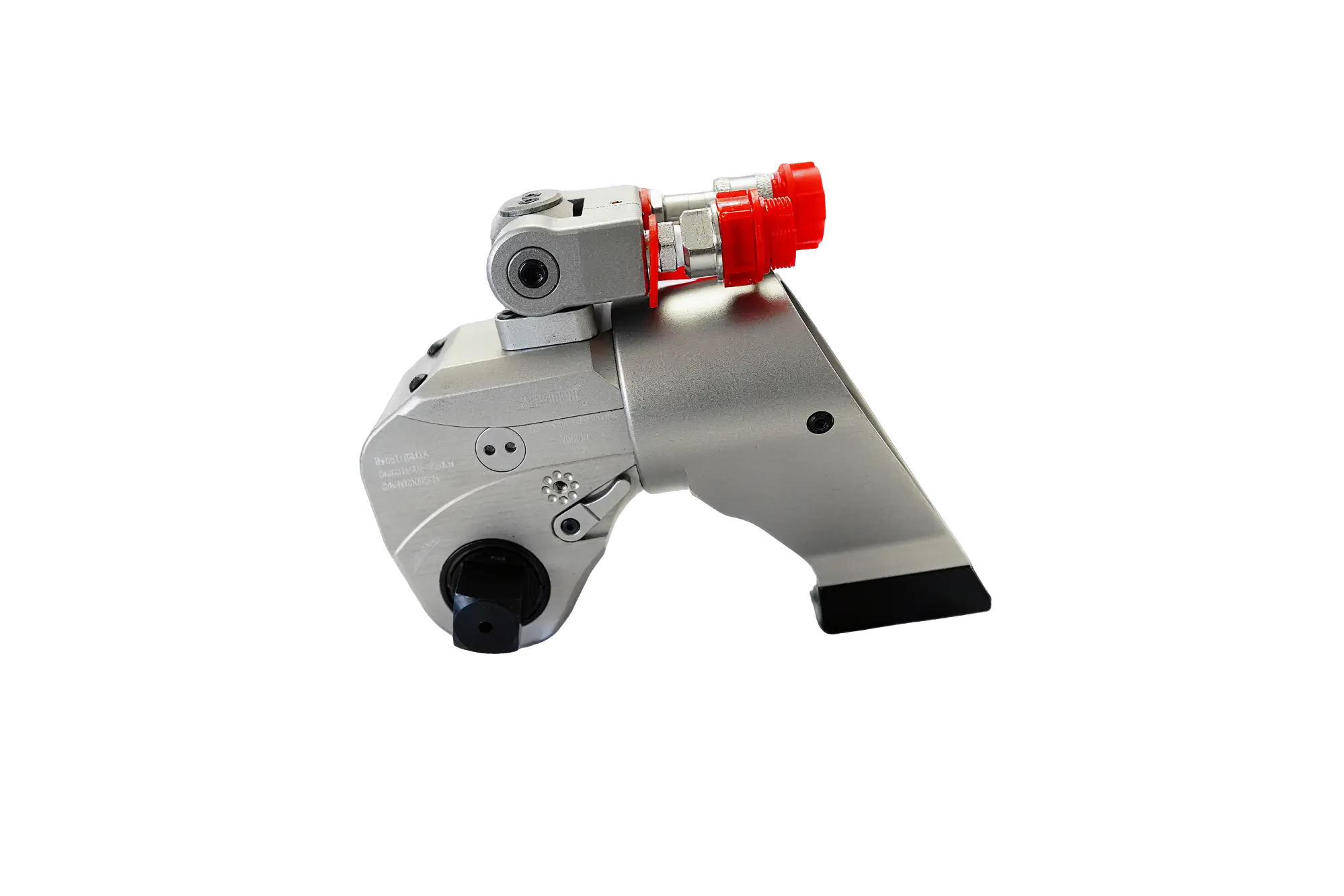

Square drive hydraulic wrench
Square drive hydraulic wrench work best in open areas needing heavy torque and fitting many sockets for most structural/industrial bolting scenarios.
For long nuts and limited space

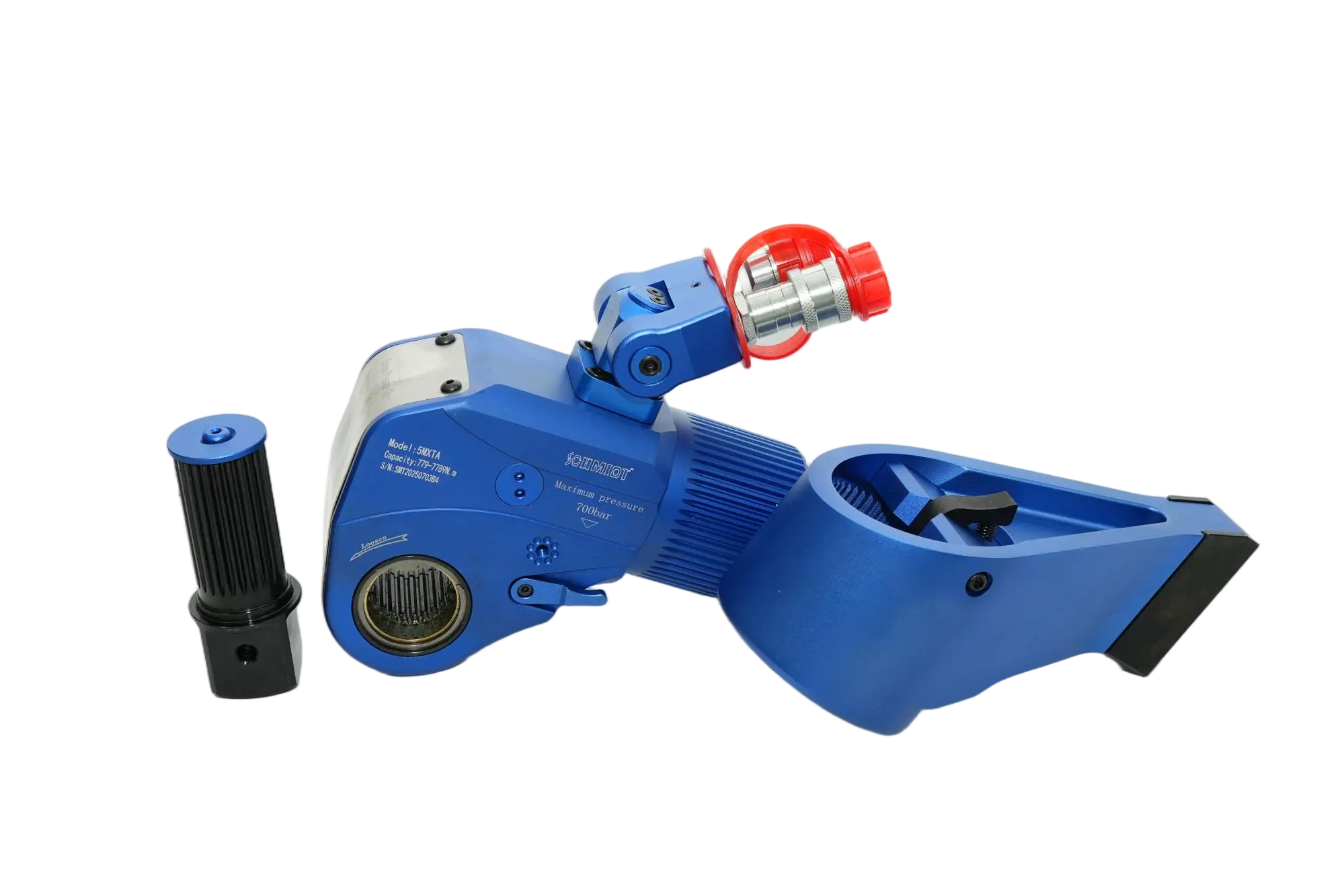

low-profile hydraulic wrench
Use low-profile wrenches when bolts exceed 100mm height or tight spaces prevent standard wrench access – common near pipes/walls.

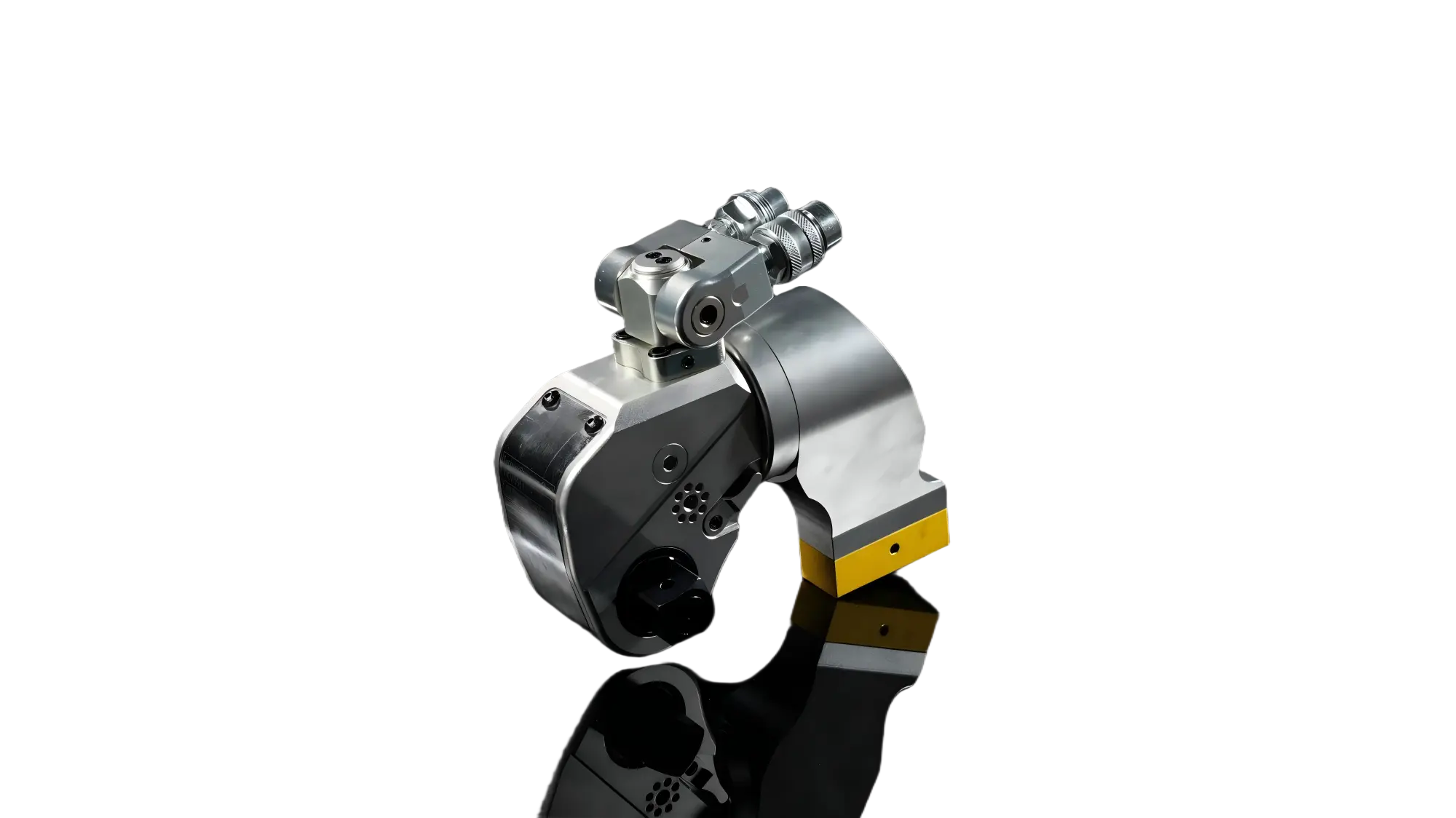

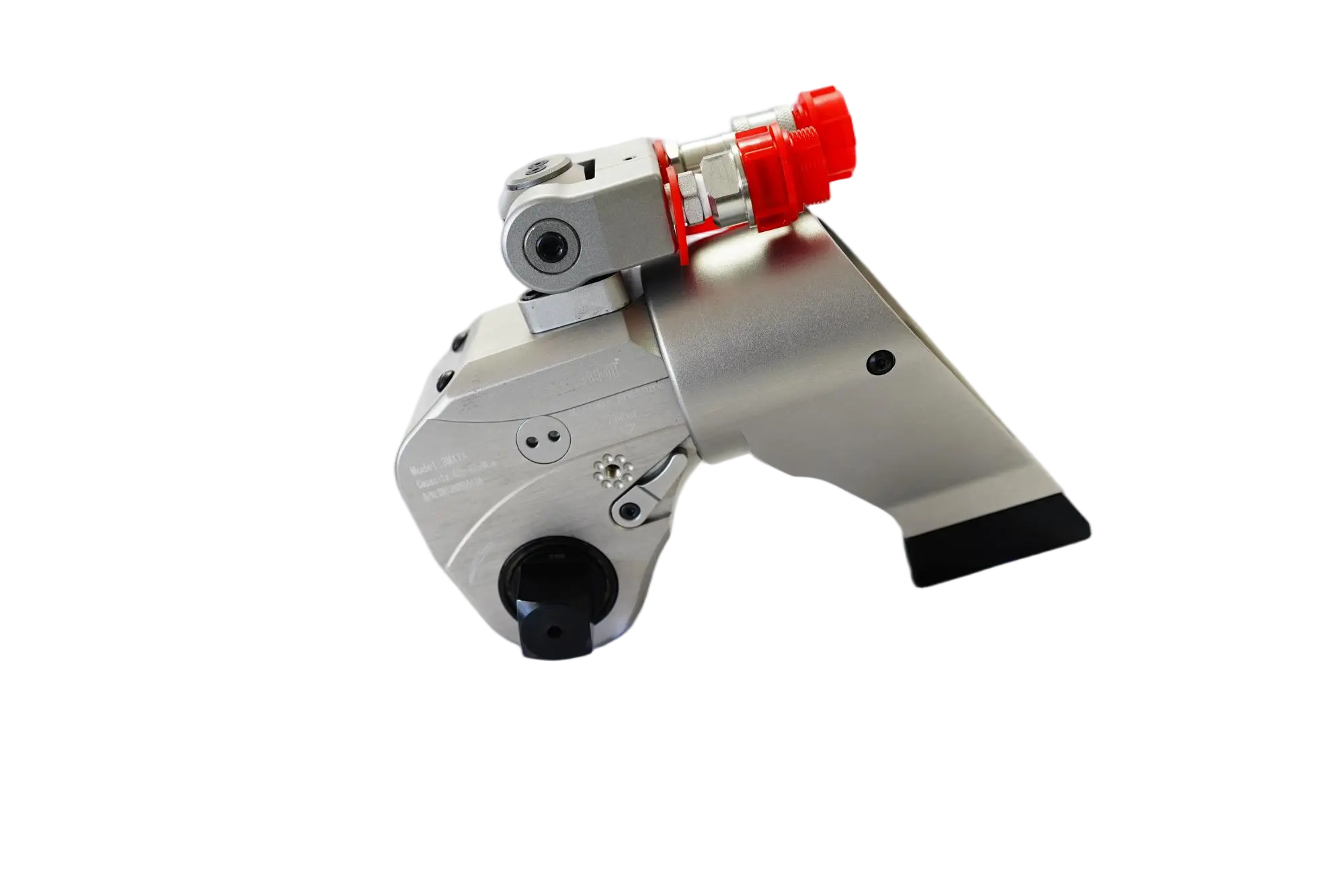

Schmidt square drive hydraulic wrench MXTA
Schmidt MXTA: Square Drive Hydraulic Wrench for Critical Bolting Demanding Uncompromised Integrity
Aerospace-Grade Lightweight Durable square drive hydraulic wrench
Utilizing aerospace Al-Ti alloy and high-strength steel, our German-engineered square drive hydraulic wrenches achieves industry-leading weight-to-strength ratio, delivering unmatched durability in confined bolt spaces.
Omnidirectional Access & Stability
Monolithic body construction with 360°×180° swivel hose and 60-point micro-adjustable reaction arm provides unrestricted positioning capability in complex assemblies.
Anti-Jam Precision Mechanics
Patented non-reverse mechanism and jam-proof pawl system guarantee consistent ±3% torque accuracy across all applications.
High-Pressure Torque Assurance
70 MPa operational pressure ensures exact transfer of preset torque values to fasteners, eliminating under/over-torquing risks.
Custom High-Capacity Range
Standard torque spectrum: 139Nm–100,000Nm, with custom-engineered solutions available for specialized requirements beyond standard square drive hydraulic wrenches.
Optimized Ratchet Engagement
15-tooth ratchet mechanism enables 24° rotation per stroke through robust single-tooth engagement, maximizing square drive hydraulic wrench’s efficiency in confined spaces while minimizing repositioning frequency during operation.
Reverse Rotation Prevention
Unique anti-reverse locking lever eliminates tool backlash from bolt springback, preventing dangerous torque reversal and maintaining square drive hydraulic wrench’s positional stability during high-pressure tensioning cycles.
6 core features of MXTA square drive hydraulic wrench
The Schmidt MXTA square drive hydraulic wrenches are widely used in construction, energy, and heavy machinery industries. ensuring safety and efficiency with their standard socket compatibility.
Precision Control
60-tooth micro-adjustable reaction arm locks securely onto structural anchors via trigger-style clasps, enabling rapid positioning (<5s) and tool-free detachment.
Stroke Feedback
Distinctive metallic “clank” at each stroke’s completion provides instant operational confirmation, enabling blind positioning control in noisy or visually restricted environments.
Zero-Leak Sealing
Spherical piston-thrust rod interface eliminates lateral loads; combines with ultra-hard seals (HRC 60+) for 10,000+ pressure cycles with zero hydraulic fluid leakage under 70 MPa.
Socket Compatibility
Standard socket drive adapters cover bolt from 16mm to 180mm (M12-M110), enabling rapid tool configuration across industrial applications without tool changes.
| Model | 0.7MXTA | 1MXTA | 3MXTA | 5MXTA | 8MXTA | 10MXTA | 15MXTA | 20MXTA | 25MXTA | 35MXTA | 50MXTA | 60MXTA |
| Torque(N.m) | 112-1120 | 179-1795 | 451- 4512 | 752-7528 | 1078-10780 | 1551-15516 | 2041-20418 | 2666-26664 | 3472-34725 | 4866-48666 | 7200-72000 | 9890-98900 |
| Bolt Size (mm) | 14~30 | 16~36 | 22~48 | 27~56 | 30~64 | 36~72 | 39~80 | 42~90 | 48~100 | 64~120 | 72~125 | 80~130 |
| Weight (kg) | 1.8 | 2.5 | 5 | 8 | 11 | 15 | 23 | 26.5 | 35 | 50 | 87 | 120 |
| Square Drive | 3/ 4″ | 3/ 4″ | 1″ | 1- 1/ 2″ | 1- 1/ 2″ | 1- 1/ 2″ | 2- 1/ 2″ | 2- 1/ 2″ | 2- 1/ 2″ | 2- 1/ 2″ | 2- 1/ 2″ | 3- 1/ 2″ |
1
1
11
1
1
1
1
1
1
| TYPE | L1 | L2 | H1 | H2 | H3 | H4 | R | R1 | R2 | R3 |
| 0.7MXTA | 110.8 | 139.3 | 42 | 65.8 | 76.2 | 108.1 | 75 | 20.5 | 68.8 | 25 |
| 1MXTA | 144 | 174 | 50 | 72 | 95.5 | 131 | 91.5 | 26 | 85.5 | 29 |
| 3MXTA | 178 | 229 | 68 | 95 | 127 | 176.5 | 123.5 | 34 | 114 | 40 |
| 5MXTA | 210.5 | 270.5 | 80 | 123 | 149 | 199 | 140 | 39 | 138 | 46.5 |
| 8MXTA | 222 | 295 | 90 | 134 | 167 | 217 | 165 | 47 | 155 | 47 |
| 10MXTA | 245.5 | 318.8 | 100 | 142 | 182 | 232 | 178 | 51 | 155.3 | 58.5 |
| 15MXTA | 292.8 | 361.3 | 112 | 167.4 | 206 | 252.4 | 188.5 | 56 | 177.7 | 67.1 |
| 20MXTA | 307.5 | 384.3 | 120 | 183 | 220 | 270 | 213 | 59 | 186 | 71 |
| 25MXTA | 323 | 402 | 137 | 200 | 247 | 297 | 228 | 66 | 199.8 | 72 |
| 35MXTA | 372.5 | 496.5 | 153 | 216 | 282 | 332 | 243.5 | 77 | 241.4 | 89.5 |
| 50MXTA | 400 | 516 | 160 | 223 | 290.5 | 341 | 258 | 81 | 258.5 | 97.5 |
| 60MXTA | 453.3 | 573.4 | 180 | 256 | 336 | 386.6 | 279 | 95 | 284.9 | 114.5 |
1
1
1
1
1
1
1
1
1
1
1
1
