mechanical flange spreader
Schmidt heavy-duty mechanical flange spreaders deliver rigging-free separation for standard pipeline maintenance. Manual operation with 300mm+ jaw opening – brute-force simplicity requiring no external power or hydraulics.
German accuracy
Fast Delivery
industry price
globally trusted
Schmidt Industrial mechanical Flange Spreaders: Precision Separation Power
Schmidt delivers robust mechanical flange spreaders engineered for safe, controlled flange separation in demanding industrial environments. Essential for pipeline construction, maintenance (gasket replacement, pressure vessel access), power generation, shipbuilding, and offshore platforms, our tools excel at bearing disassembly, cylinder head opening, and workpiece alignment. Selecting the optimal spreader depends on the flange gap size, diameter, and specific task requirements. Trust Schmidt for reliable, precise separation, minimizing downtime and maximizing safety during critical procedures.

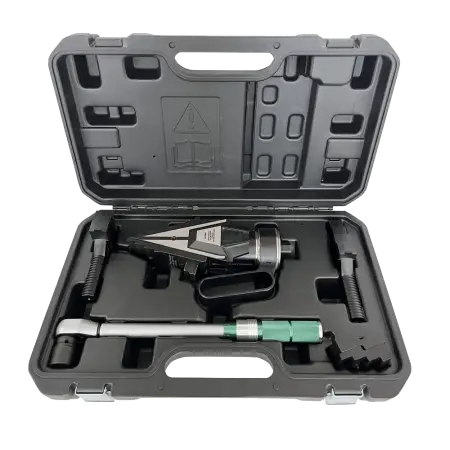

fsm8 Series: 8 Ton mechanical flange spreader
The FSM8 flange spreader delivers superior, safe separation. Its integrated wedge concept ensures friction-free, smooth, parallel movement, eliminating flange damage and spreader arm failure. The unique interlocking wedge design prevents dangerous first-step bending and slippage. This flange spreader requires a minimal 6mm access gap. The spreader’s stepped arms handle full load at every position. With few moving parts, this robust flange spreader guarantees durability and low maintenance. Includes essential safety block and ratchet spanner for secure flange spreader operation.
SWi1214tm Series: 14 Ton mechanical flange spreader
The SWi1214TM flange spreader is the simple, mechanical solution requiring only a 6.0mm (0.25″) access gap. This innovative flange spreading wedge delivers 30% higher spreading capacity than the FSM8. The SWi1214TM flange spreader is smaller, lighter, and narrower than the FSM8, featuring a swivel handle, no finger pinch points, and a standard safety lanyard. Mechanically operated, this powerful flange spreader exerts a massive 14T (140kN) spreading force for safe, efficient flange joint separation.
1
1
1
1
1
1
1
1
1
1
1
1
| Model Number | Max Spreading Force/Ton | Tip Clearance/mm | Max Spread/mm | Spreader Type | Weight/Kg |
| FSM8 | 8 | 6 | 81 | Mechanical | 6.5 |
1
1
1
1
1
1
1
1
1
1
1
1
|
Model |
Capacity/Ton |
Maximum Spread/mm |
Tip Clearance/mm |
Jaw Width/mm |
Oil Capacity/cm³ |
Power |
Weight/Kg |
|
SWi1214TM |
14 |
103.5 |
6 |
60 |
* |
Mechanical Type |
13 |
