RC RR Series:
Precision General Purpose Hydraulic Cylinders for Every Industrial Challenge
Explore our versatile general purpose hydraulic cylinders in single/double-acting models – engineered for durability, reliability, and superior performance across excavators, industrial presses, agricultural machinery, and global material handling systems.
The Essential General purpose Hydraulic Cylinder: Power of Industrial Construction Systems
General-purpose hydraulic cylinders efficiently convert hydraulic fluid power into precise linear motion, delivering reliable bidirectional force in both single and double-acting configurations. These robust actuators excel in demanding applications such as excavators, industrial presses, agricultural machinery, and material handling systems. Featuring high-strength construction, precision seals, and standardized mounting designs, they ensure long service life, minimal maintenance, and consistent performance under high loads. Their versatility and adaptability make them indispensable across construction, manufacturing, agriculture, and logistics sectors, providing powerful and dependable operation in diverse environmental conditions.
Single-acting
RC-Series
Durable single-acting general-purpose hydraulic cylinders engineered for heavy lifting, pressing, and pushing tasks. Built to maximize productivity with advanced protective features.
Capacity: 5 – 100 tons
Stroke: 0.63 – 14.25 inches
Double-acting
RR-Series
Double-acting general-purpose hydraulic cylinders with rapid precision retraction control. Rugged designs for demanding construction and manufacturing applications.
Capacity: 10 – 500 tons
Stroke: 2.25 – 48 inches
Schmidt General-purpose hydraulic cylinders RC Series(Single-acting)
Schmidt General-Purpose Hydraulic Cylinders RC Series: Single-acting Hydraulic Cylinder Built for Versatility: Unmatched Strength in Lifting, Pressing & Pushing Operations
Side Load Defense
The Trio Bearing system integrates hardened composite wear bands to deliver exceptional resistance against damaging side loads during operation.
Durability Boost
A reinforced Trio Stop Ring significantly enhances cylinder longevity and withstands intense side forces, minimizing wear and failure risks.
Fast Retraction
Trio Hybrid’s pre-tensioned spring system ensures rapid piston retraction, boosting cycle speed and operational efficiency in repetitive tasks.
User-Friendly Saddle
Most RC cylinders (excluding RC50/RC101) feature a hardened, removable grooved saddle for simplified maintenance and secure load positioning.
Contamination Shield
Integrated plunger wipers actively exclude debris and contaminants, preventing internal damage and substantially extending service life
Premium Sealing
High-grade polyethylene seals minimize friction and wear under extreme conditions, drastically reducing failure rates and ensuring exceptionally long service life with minimal maintenance.
Versatile Mounting
Integrated collar and plunger threads plus base mounting holes on most models enable quick, flexible, and secure fixturing using standard bolts or clamps for diverse applications.
6 core features of general purpose hydraulic cylinder
General purpose hydraulic cylinders are widely used in manufacturing, construction, and automotive industries for pressing, lifting, clamping, and bending applications that require reliable linear force.
Safe Handling
Standard certified lifting on cylinders >25kg ensure secure lifting and positioning in any orientation; optionally interchangeable with an CHM6 handle for easier transport.
Corrosion Defense
A tough enamel finish provides superior, long-lasting protection against rust, chemicals, and harsh environmental elements, ensuring reliable performance in industrial.
Removable Saddle
Most RC cylinders feature a hardened, user-replaceable grooved saddle, significantly easing maintenance while offering robust, reliable load support in heavy-duty applications.
Enhanced Options
A wide range of accessories, including pressure gauges and pre-assembled cylinder-pump sets, is available for customization to meet operational needs and enhance functionality.

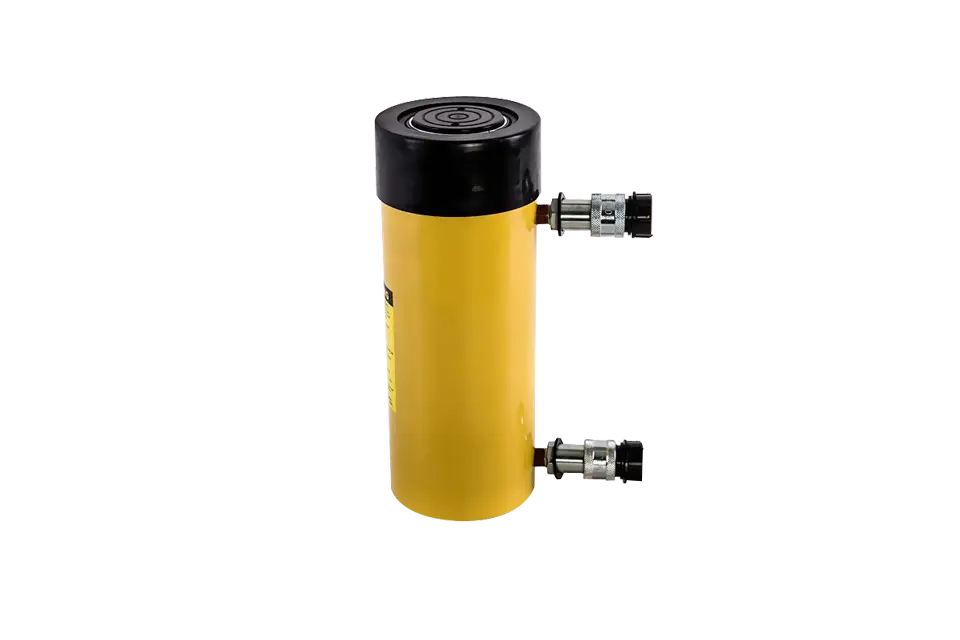

RR-Series – double-acting general purpose hydraulic cylinder

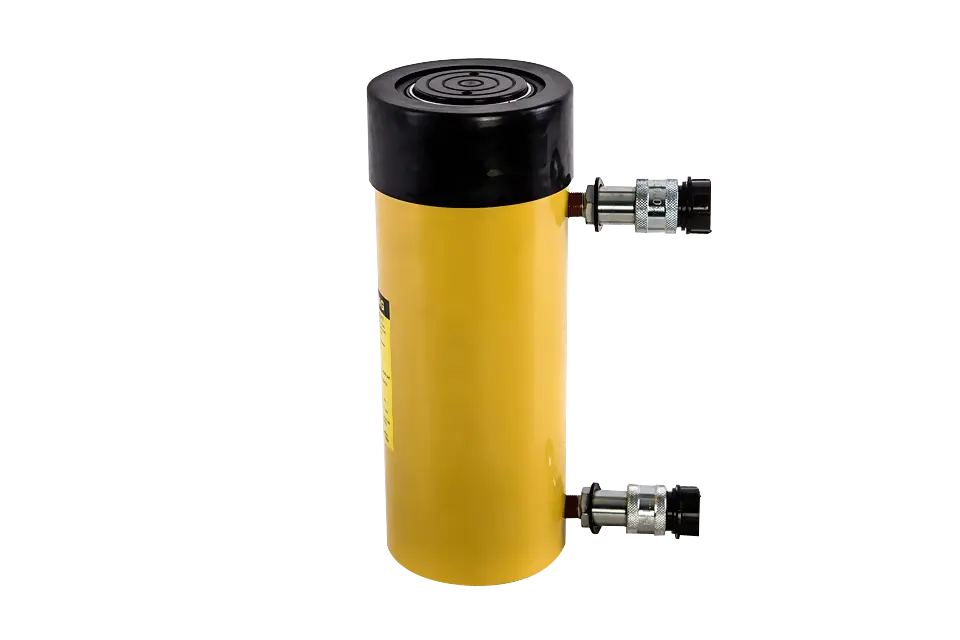

RR-Series double-acting General-purpose hydraulic cylinders deliver precise hydraulic control for both extension and retraction via two connection ports. Ideal for demanding construction and manufacturing applications, these rugged rams offer controlled high-cycle performance. Long stroke models efficiently lift or push loads greater distances, saving time and reducing cribbing needs compared to single-acting alternatives.
Dual-Port Control
Two hydraulic ports provide active oil flow for both plunger directions.
Easy Fixturing
Collar and plunger threads enable simple, secure mounting attachment.
Bidirectional Force
Delivers accurate control for extending and retracting motions.
Position Holding
Maintains load securely at any point within the stroke travel, safer to hold.
| Cylinder Capacity ton (kN) |
Stroke (mm) |
Model Number |
Cylinder Effective Area (cm2) |
Oil Capacity (cm3) |
Collapsed Height (mm) |
Weight (kg) | Cylinder Capacity ton (kN) |
Stroke (mm) |
Model Number |
Cylinder Effective Area (cm2) |
Oil Capacity (cm3) |
Collapsed Height (mm) |
Weight (kg) |
| 5 (45) |
16 | RC50 | 64 | 10 | 41 | 10 | 25 (232) |
26 | RC251 | 333 | 86 | 140 | 59 |
| 50 | RC252 * | 333 | 166 | 165 | 64 | ||||||||
| 25 | RC51 | 64 | 16 | 110 | 10 | 102 | RC254 * | 333 | 339 | 216 | 82 | ||
| 79 | RC53 | 64 | 50 | 165 | 15 | 158 | RC256 * | 333 | 525 | 273 | 100 | ||
| 127 | RC55 * | 64 | 83 | 216 | 19 | 210 | RC258 | 333 | 697 | 324 | 122 | ||
| 177 | RC57 | 64 | 115 | 273 | 24 | 261 | RC2510 | 333 | 867 | 375 | 141 | ||
| 311 | RC2512 | 333 | 1033 | 425 | 163 | ||||||||
| 232 | RC59 | 64 | 151 | 324 | 28 | 362 | RC2514 * | 333 | 1202 | 476 | 177 | ||
| 10 (101) |
26 | RC101 | 144 | 38 | 90 | 18 | 30 (295) | 209 | RC308 | 429 | 880 | 387 | 181 |
| 54 | RC102 * | 144 | 78 | 121 | 23 | 50 (498) |
51 | RC502 | 713 | 362 | 176 | 150 | |
| 105 | RC104 | 144 | 152 | 171 | 33 | 101 | RC504 | 713 | 719 | 227 | 191 | ||
| 156 | RC106 * | 144 | 226 | 248 | 44 | 159 | RC506 * | 713 | 1131 | 283 | 231 | ||
| 203 | RC108 | 144 | 294 | 298 | 54 | ||||||||
| 337 | RC5013 | 713 | 2399 | 460 | 376 | ||||||||
| 257 | RC1010 * | 144 | 373 | 349 | 64 | 75 (718) |
156 | RC756 | 1,026 | 1601 | 286 | 295 | |
| 304 | RC1012 | 144 | 441 | 400 | 68 | 333 | RC7513 | 1,026 | 3417 | 492 | 590 | ||
| 356 | RC1014 | 144 | 516 | 451 | 82 | 95 (933) |
50 | RC1002 | 1,331 | 676 | 219 | 367 | |
| 15 (142) |
25 | RC151 | 203 | 51 | 124 | 33 | 168 | RC1006 | 1,331 | 2239 | 357 | 590 | |
| 51 | RC152 | 203 | 104 | 149 | 41 | 260 | RC10010 | 1,331 | 3466 | 449 | 726 | ||
| 101 | RC154 * | 203 | 205 | 200 | 50 | ||||||||
| 152 | RC156 * | 203 | 308 | 271 | 68 | ||||||||
| 203 | RC158 | 203 | 411 | 322 | 82 | ||||||||
| 254 | RC1510 | 203 | 516 | 373 | 95 | ||||||||
| 305 | RC1512 | 203 | 619 | 424 | 109 | ||||||||
| 356 | RC1514 | 203 | 723 | 475 | 118 | ||||||||
| Cylinder Capacity ton (kN) |
Stroke (mm) |
Model Number |
Cylinder Effective Area (cm2) |
Oil Capacity (cm3) |
Coll. Height (mm) |
Cylinder Capacity ton (kN) |
Stroke (mm) |
Model Number |
Cylinder Effective Area (cm2) |
Oil Capacity (cm3) |
Coll. Height (mm) |
||||
| Push | Pull | Push | Pull | Push | Pull | Push | Pull | ||||||||
| 10 (101) |
254 | RR1010 | 145 | 48 | 368 | 122 | 409 | 325 (3201) |
153 | RR3006 | 4,573 | 2,432 | 6997 | 3721 | 485 |
| 305 | RR1012 | 145 | 48 | 442 | 147 | 457 | 305 | RR30012 | 4,573 | 2,432 | 13947 | 7418 | 638 | ||
| 30 (295) |
209 | RR308 | 421 | 191 | 879 | 400 | 394 | 457 | RR30018 | 4,573 | 2,432 | 20.889 | 11.114 | 790 | |
| 368 | RR3014 | 421 | 191 | 1549 | 703 | 549 | 609 | RR30024 | 4,573 | 2,432 | 27.850 | 14.811 | 943 | ||
| 50 (498) |
156 | RR506 | 712 | 215 | 1111 | 335 | 331 | 915 | RR30036 | 4,573 | 2,432 | 41.843 | 22.253 | 1247 | |
| 334 | RR5013 | 712 | 215 | 2378 | 718 | 509 | 1219 | RR30048 | 4,573 | 2,432 | 55745 | 29646 | 1552 | ||
| 511 | RR5020 | 712 | 215 | 3638 | 1099 | 733 | 440 (4292) |
152 | RR4006 | 6,131 | 3,281 | 9319 | 4987 | 538 | |
| 75 (718) |
156 | RR756 | 1,026 | 314 | 1601 | 490 | 347 | 305 | RR40012 | 6,131 | 3,281 | 18.700 | 10.007 | 690 | |
| 333 | RR7513 | 1,026 | 314 | 3417 | 1046 | 525 | 457 | RR40018 | 6,131 | 3,281 | 28.018 | 14.995 | 843 | ||
| 95 (933) |
168 | RR1006 | 1,333 | 622 | 2238 | 1045 | 357 | 610 | RR40024 | 6,131 | 3,281 | 37.400 | 20.014 | 995 | |
| 333 | RR10013 | 1,333 | 622 | 4439 | 2071 | 524 | 914 | RR40036 | 6,131 | 3,281 | 56.037 | 29.988 | 1300 | ||
| 460 | RR10018 | 1,333 | 622 | 6132 | 2861 | 687 | 1219 | RR40048 | 6,131 | 3,281 | 74.737 | 39.996 | 1605 | ||
| 140 (1386) |
57 | RR1502 | 1,981 | 954 | 1129 | 544 | 183 | 520 (5108) |
153 | RR5006 | 7,297 | 4,054 | 11.164 | 6203 | 577 |
| 156 | RR1506 | 1,981 | 954 | 3090 | 1488 | 385 | 305 | RR50012 | 7,297 | 4,054 | 22.256 | 12.365 | 730 | ||
| 333 | RR15013 | 1,981 | 954 | 6597 | 3177 | 582 | 457 | RR50018 | 7,297 | 4,054 | 33.347 | 18.526 | 882 | ||
| 815 | RR15032 | 1,981 | 954 | 16.145 | 7775 | 1116 | 609 | RR50024 | 7,297 | 4,054 | 44.440 | 24.689 | 1035 | ||
| 200 (1995) |
152 | RR2006 | 2,850 | 1,453 | 4332 | 2209 | 430 | 915 | RR50036 | 7,297 | 4,054 | 66.768 | 36.973 | 1339 | |
| 330 | RR20013 | 2,850 | 1,453 | 9405 | 4795 | 608 | 1219 | RR50048 | 7,297 | 4,054 | 88.951 | 49.418 | 1644 | ||
| 457 | RR20018 | 2,850 | 1,453 | 13025 | 6640 | 765 | |||||||||
| 610 | RR20024 | 2,850 | 1,453 | 17.385 | 8863 | 917 | |||||||||
| 914 | RR20036 | 2,850 | 1,453 | 26.049 | 13.280 | 1222 | |||||||||
| 1219 | RR20048 | 2,850 | 1,453 | 34.741 | 17.712 | 1527 | |||||||||
